CHASSIS

> 3.0 litre V4 turbo-diesel engine > Max power (kW): 125 > Max Torque (Nm): 400 > Kerb weight(kg): 3420 > Wheelbase: 3300 mm > Fuel Tank: 90 litres > Transmission : 8AT > 170 Amp Alternator

Price（$）：

Category:

TYPE III

Inquiry

FEATURES
SPECS
MODELS
图片详情

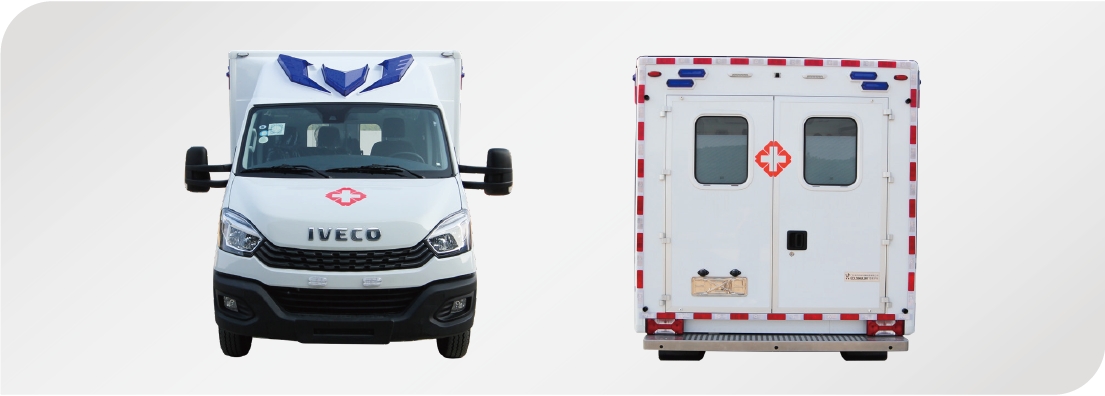

Commodity name: DAILY BOX

> 3.0 litre V4 turbo-diesel engine > Max power (kW): 125 > Max Torque (Nm): 400 > Kerb weight(kg): 3420 > Wheelbase: 3300 mm > Fuel Tank: 90 litres > Transmission : 8AT > 170 Amp Alternator

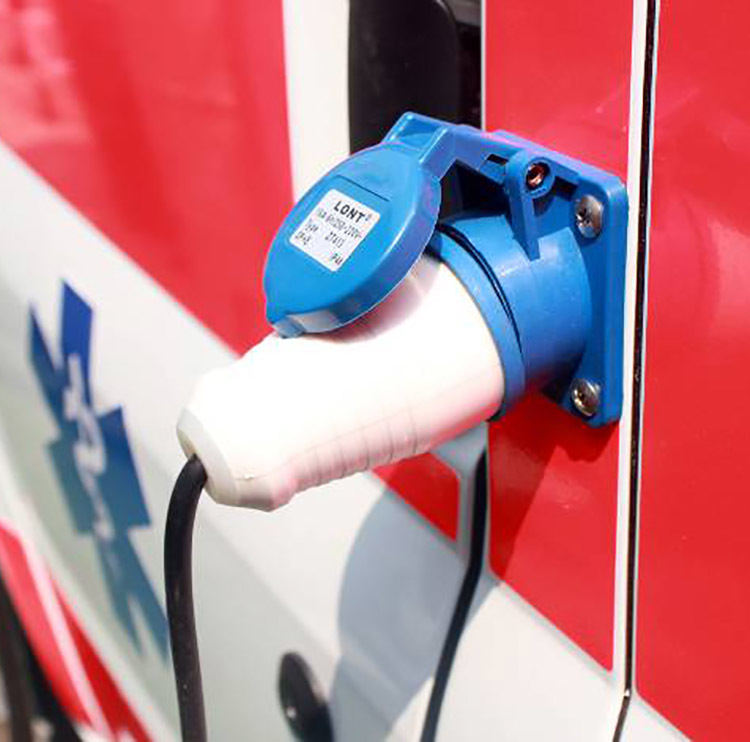

A/C POWER SUPPLY

A/C power supply can be used for charging the primary battery and Additional batteries when needed. A/C power supply with an external power wire, was located on the left-rear side of the ambulance.
End of the external power wire into external electric supply outlet of the ambulance, and plug the other end into city ground power outlet.

SMART KEY EMERGENCY START

Due to the limitation of the battery, it might lost power on its own. The ambulance can not be resumed if you park it for a long time.
Smart Key Emergency Startlocated in the driving cab can ensure that the ambulance can still be used when the voltage of the primary battery is less than 12V, by connecting the Additional batteries.

THE ELECTRIC BOX

The electric box is the electrical equipment control device (Includes: safety switch, relay group, fuse box, electrical controller, power supply, inverter, split charge)

CONTROL PANEL

The medical crew can control all the electrical equipment in the patient compartment by pressing the front/Rear Control Panel. Also, the driver can control all the electric equipment without getting off the ambulance. This will undoubtedly make all operations easier and more convenient.

HIGH DENSITY PVC SHEET

PVC board has the characteristics of waterproof, moisture-proof, flame-retardant, acid-alkali resistance, moth-proof, light weight, heat preservation, sound insulation and shock absorption. Plate density level is diverse, and we use high-density plate, it is difficult to produce scratches, it's not easy to aging.

GAS MANIFOLD SYSTEM

Automatic switchover manifold system that changes between a primary side, or bank, and the secondaryside using the pressure differential between the two sides of high pressure gas supply. The control panel has two outlets, barometers and change-over switch.

Key words:

MERCEDES VITO

| CONVERSION

• LED Work lights and Electronic Siren, Optional red or blue
• Six (6) Perimeter led Lights, 2 each side and 2 on rear, Optional red or blue
• Three(3) outside ground led spotlights that are activated when the rear doors or side doors are open.
• One additional battery.
• Smart Key Emergency Start
• Intelligent charging regulator(Auto split charge), 12V 140Amp Voltage Sense Relay Kits.
• AC220V Inverter Charger, 1000W pure sine wave inverter with battery charger.
• Central electrical control system
• Four(4) LED room lights in Patient compartment
• Double -loop pulse switch control device (Both driver cab and Patient compartment have one，its panel can be operated and display.)
• 220V & 12V Outlets
• Rear View Camera system
• UV Sterilization lamp
• Ventilation system
• Patient compartment Independent Heating and Air System
• Intercom system could communication between patient compartment and driving cab

• Transfusion rack on the interior roof
• Yellow nylon antibacterial handrails mounted on the top
• Partition wall between driver cab and Patient compartment:with a sliding window

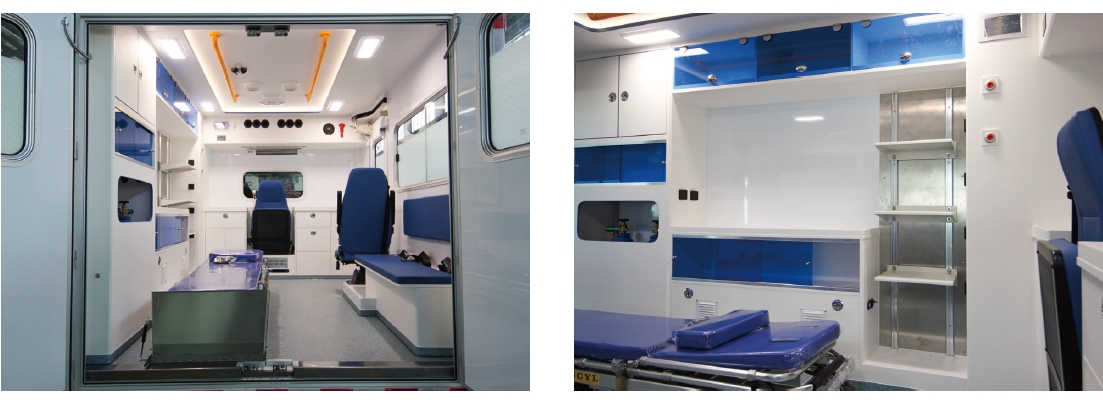

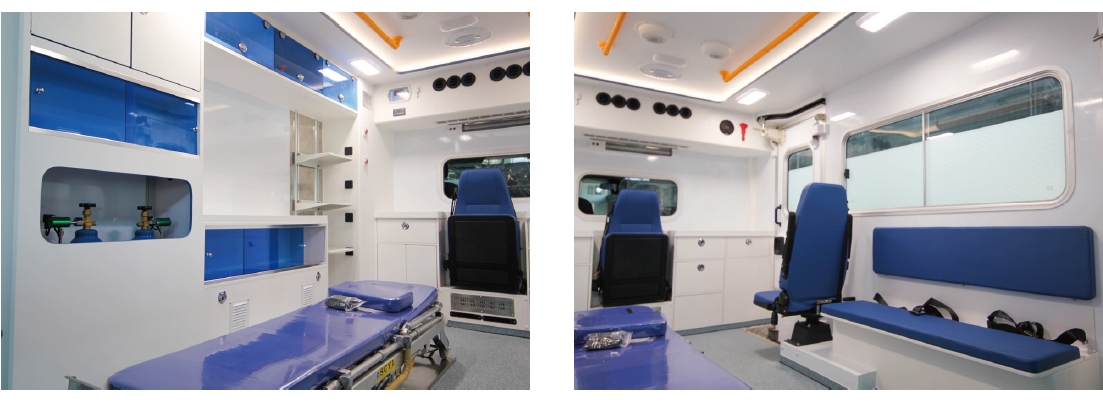

• The interior furnishing is covered by ABS disposable whole.
• Medical cabinet, All of cabinets were made by 15mm lighting PVC Foam board
• ABS board plastics-absorption forming package on all face of the cabinet of the inner Patient compartment
• Two(2) Four-compartment suspension cabinet
• One Foldable Seat with safe two point seat belts in front of partition wall
• High Back revolving folding Seat with safe three point seat belts.
• Squad bench has three (3) Seats with safe two point seat belts.

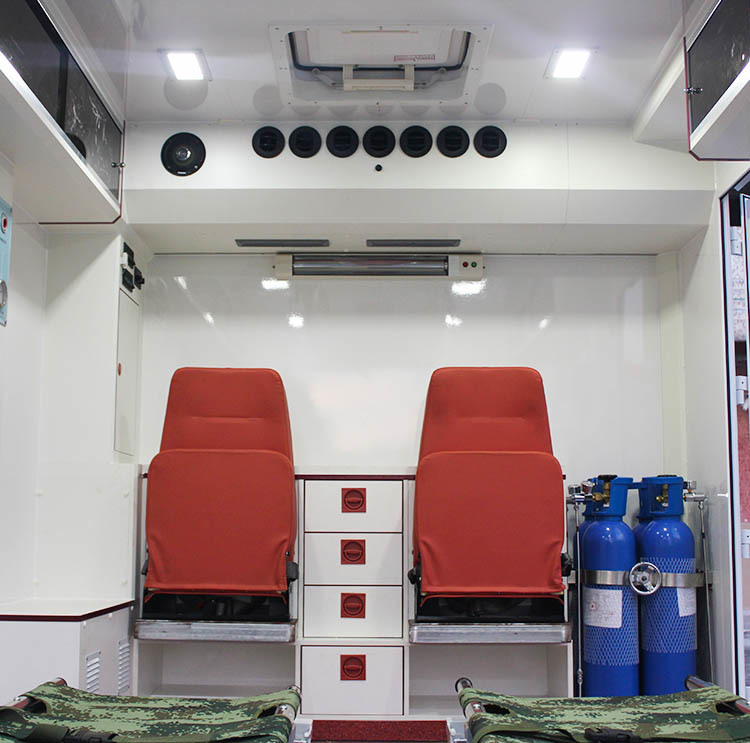

• Two(2) oxygen cylinder, Water capacity 10 liter
• The oxygen cabinet with aluminum alloy roller shutter door
• Automatic switchover manifold system, German style quick release, Two(2) outlets in action wall panel
• Ambulance stretcher
• PVC coil flooring of LG Hausys

| CONVERSION

Automatic manifold system is designed to be a fully automatic system for use with high pressure cylinders. The manifold gives an uninterrupted supply of gas as the primary bank of cylinders is depleted.
Accept customization, Patient compartment customized, Exterior paint or graphics.

Medical equipments (Defibrillation monitor, ventilator, suction device, infusion pump, CPR, spinal plate, vacuum splint, sphygmomanometer, blood glucose meter, fiberoptic laryngoscope, thermometer, etc.)
MDVR, four(4) HD cameras and 500GB hard drives.

Model	DIMENSIONS			Engine Name	Emission standard	TIRE Size	Rated capacity (driver included)
	L (mm)	W (mm)	H (mm)
DAILY Box	5670	2011	2737	F1C 3.0	EURO VI	255/100R16	9
