Commodity name: Negative pressure system

The negative pressure system is applicable to all ambulance models.

NEGATIVE PRESSURE VALUE

After the use of this device, according to the degree of sealing of the car body, the negative pressure of -20Pa ~ -40Pa can be reached. Negative pressure ambulance patient indoor negative pressure of -15Pa ~ -30 can meet the technical requirements.

FUNCTION

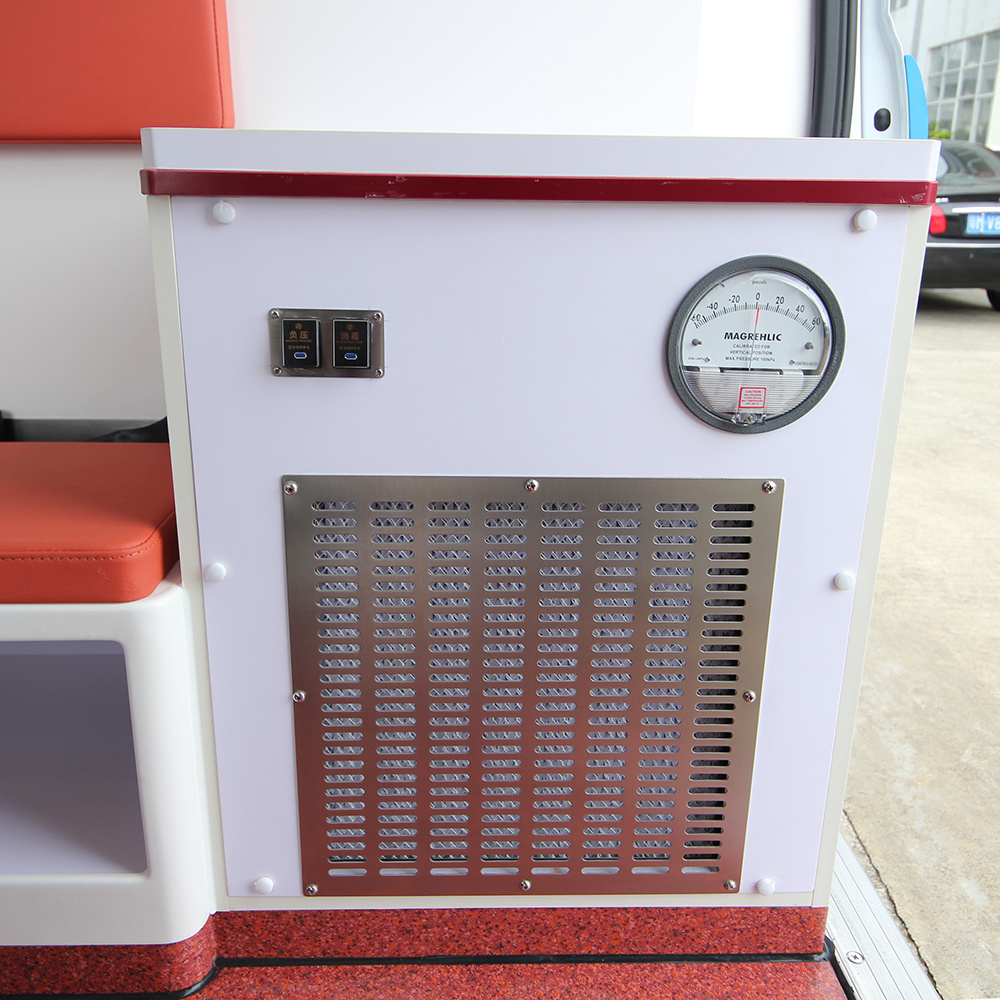

This device is suitable for installation in the patient room of the negative pressure ambulance to achieve the negative pressure isolation requirements of the patient room. The bio-polluted air in the patient's room of the negative pressure ambulance is efficiently filtered by this device and discharged from the car to ensure that it does not pollute the external environment.

DISINFECT

Strong ultraviolet disinfection lamp, turn on the disinfection lamp after running for 20-30 minutes, you can complete the disinfection and sterilization.

NEGATIVE PRESSURE REGULATION

This device has two wind speeds, which can be adjusted according to the actual needs of the model.

NEGATIVE PRESSURE INTELLIGENT CONTROLLER

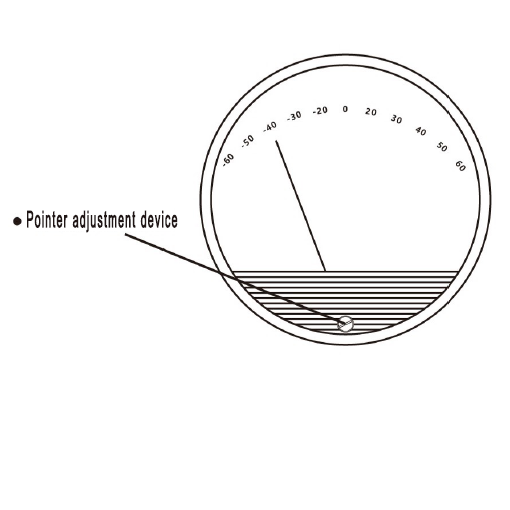

It can display real-time negative pressure value and set negative pressure value (maximum value of ordinary negative pressure device: - 40Pa)

INSTALLATION POSITION

It can be installed in a split type, which can be built-in on the original medical cabinet of the ambulance, and the integrity and sealing performance are stronger.

Key words:

Negative pressure

| CONVERSION

• Dimensions： 360 mm×300 mm×450 mm
• Input voltage： 12V
• Power： <250 W
• Maximum exhaust airflow：320 m3/h
• Filtration efficiency： >99.97%
• Disinfection method： Ultraviolet
• Differential pressure range： -15 to -40pa

| CONVERSION

Model	DIMENSIONS			Engine Name	Emission standard	TIRE Size	Rated capacity (driver included)
	L (mm)	W (mm)	H (mm)
New HiaceD (RHD,AT)	5915	1950	2430	1GD-FTV (2.8L)	EURO V	235/65 R16C	7
