CHASSIS

The laminar negative pressure system is suitable for vehicles with large space in Patient compartment

Price（$）：

Category:

NEGATIVE PRESSURE AMBULANCE

Inquiry

FEATURES
SPECS
MODELS
图片详情

Commodity name: Laminar flow negative pressure 11

The laminar negative pressure system is suitable for vehicles with large space in Patient compartment

NEGATIVE PRESSURE VALUE

Based on the design principle of hydrodynamics, a fixed air flow field area is formed in the negative pressure chamber through the balanced air flow pressure of the high-efficiency air filter, and the air pressure in the negative pressure chamber is between - 50pA and - 120pa

FUNCTION

Laminar flow negative pressure ambulance special system

DISINFECT

Strong ultraviolet disinfection lamp, turn on the disinfection lamp after running for 20-30 minutes, you can complete the disinfection and sterilization.

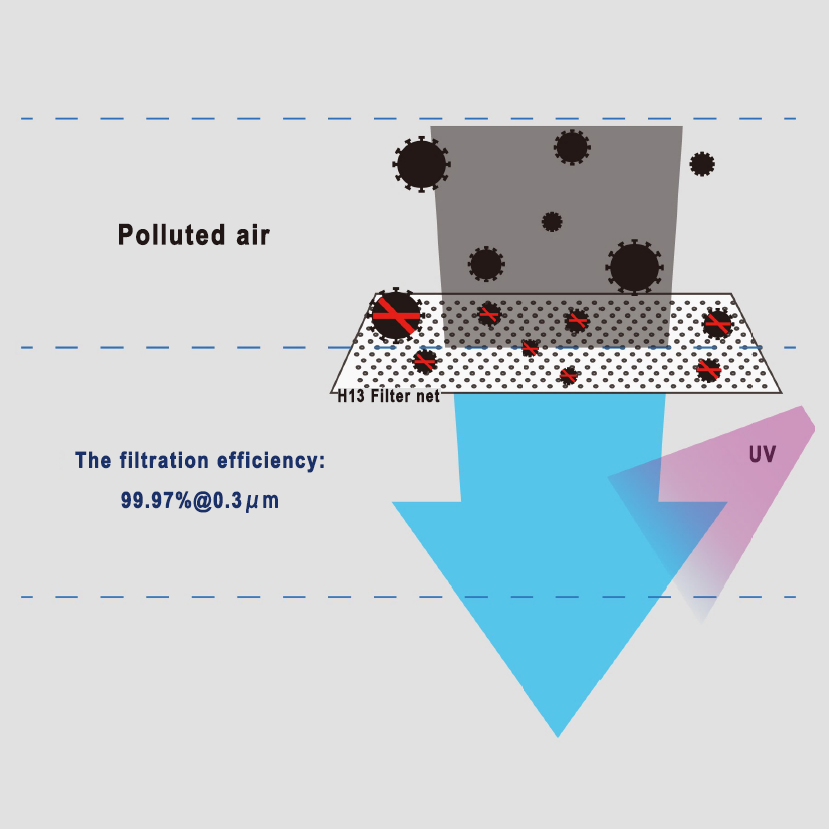

THE FILTER

All gases in the full negative pressure monitoring medical vehicle pass through 6 sets of H13 level high-efficiency filters (the filtration efficiency is 99.97%) and 2 sets of medium efficiency F6 level filter and virus remover system, which can effectively filter the gas with virus exhaled by patients.

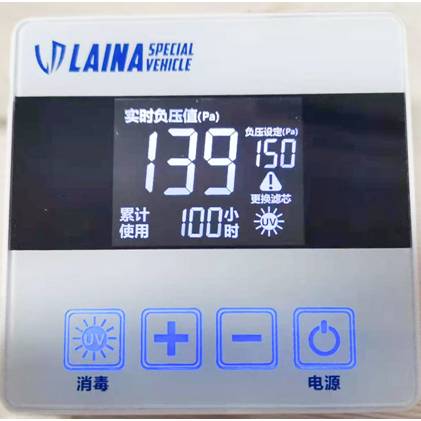

NEGATIVE PRESSURE INTELLIGENT CONTROLLER

It can display real-time negative pressure value and set negative pressure value (maximum value of ordinary negative pressure device: - 40Pa)

OPERATION

The control switch of negative pressure high-efficiency intake filter and high-efficiency exhaust filter system can operate the display, which can be started or closed according to the use needs of doctors. After closing, the electronic ventilation system in the vehicle can be used to ensure ventilation.

Key words:

Negative pressure

| CONVERSION

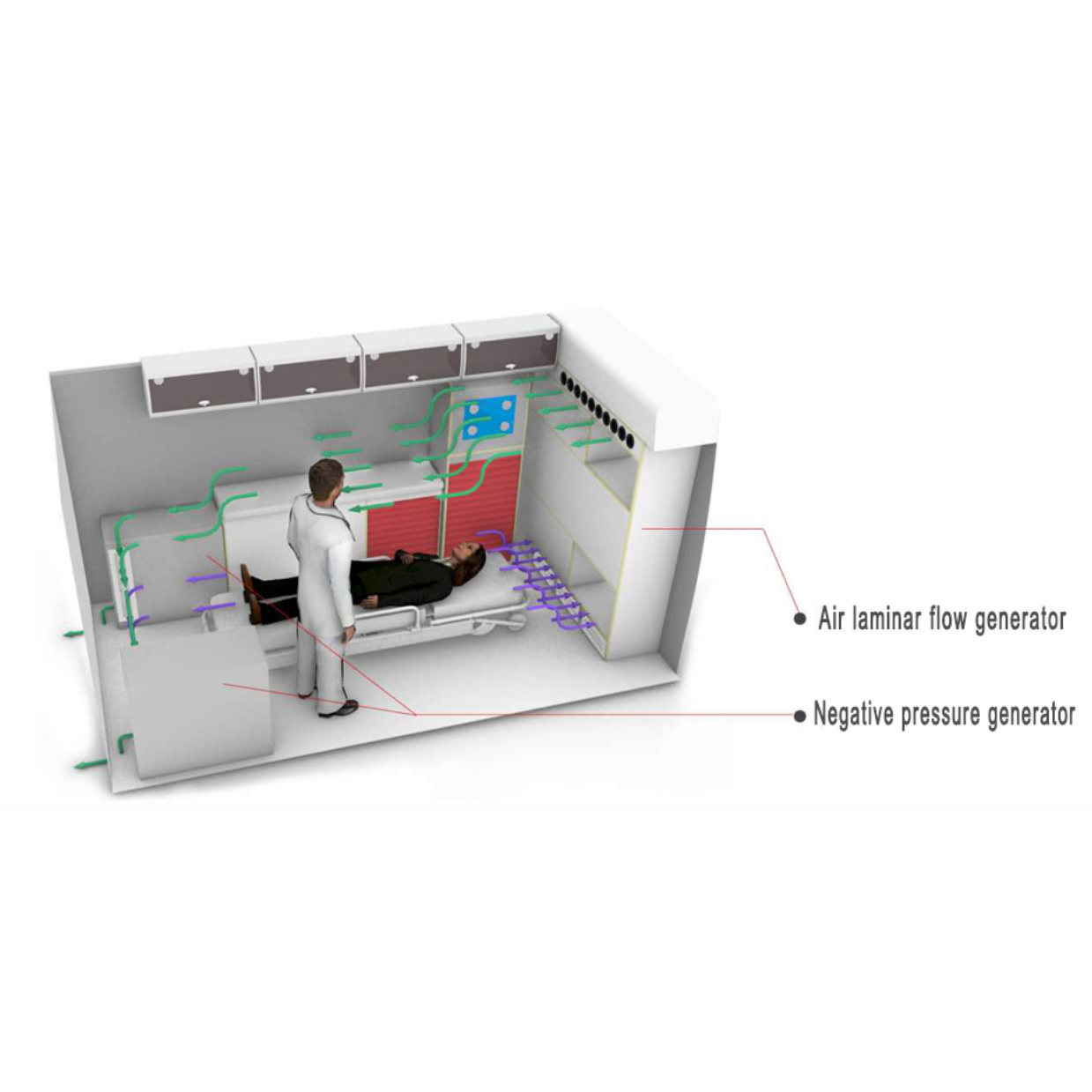

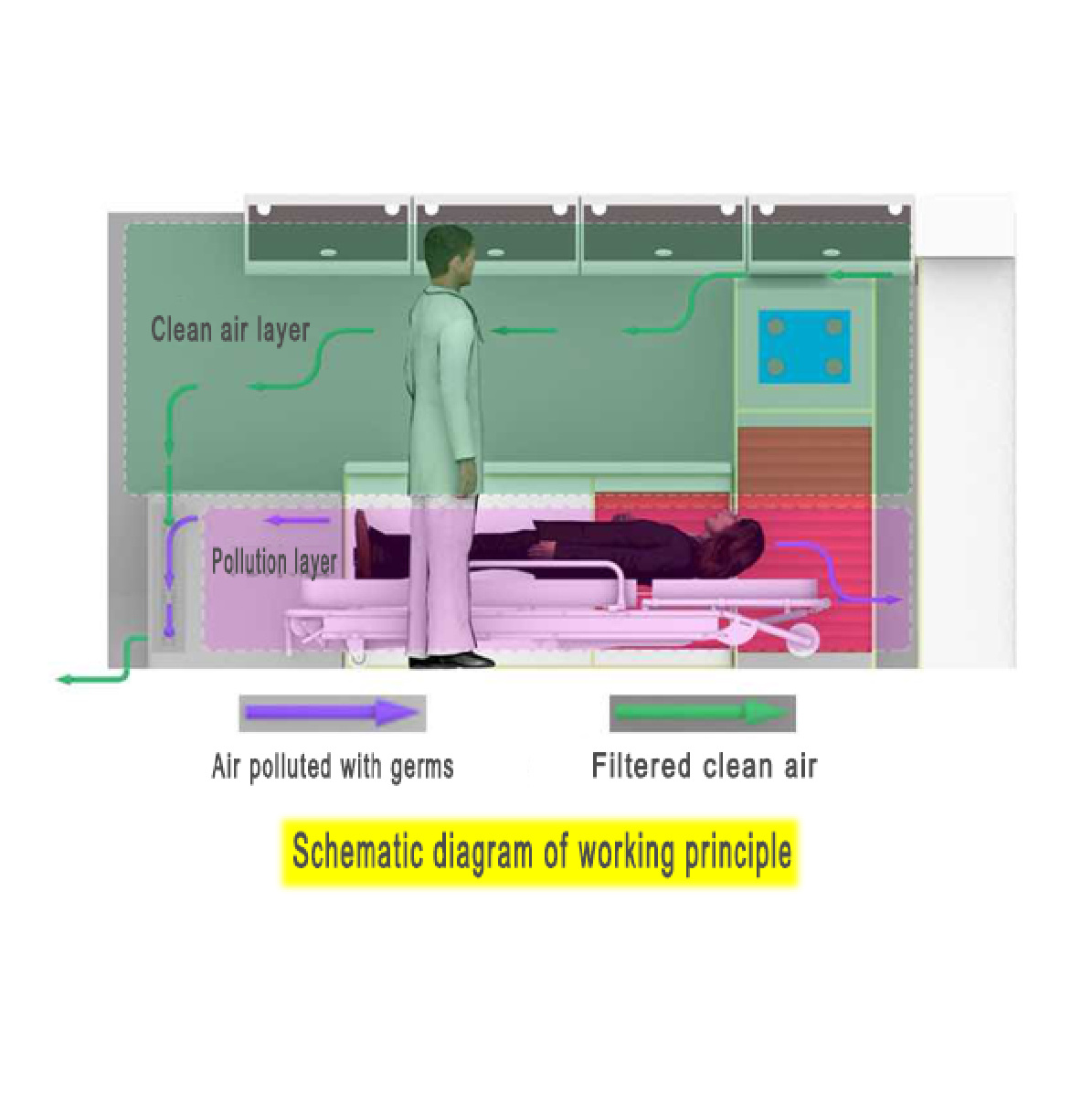

• Internal circulation device with laminar flow function: Through decoration, two opposite airflow layers are formed in the medical cabin. The upper layer is the filtered clean airflow and the lower layer is the polluted airflow. Effectively protect medical staff.
• The upper and lower two-stage high-efficiency filter screen has a filtering efficiency of 99.97% @3 μ m. Large size H13 filter screen air inlet improves the service life of the filter screen and • increases the air inlet volume. Filter screen size: ≥ 610 * 305 * 290 mm.
• Two negative pressure generating devices are installed at the tail of the medical cabin: filtration efficiency: 99.97% @3 μ m.
• Maximum negative pressure in the cabin: - 50pa to - 120pa.
• The negative pressure value is adjustable in the third gear.
• Mechanical differential pressure gauge.

| CONVERSION

Model	DIMENSIONS			Engine Name	Emission standard	TIRE Size	Rated capacity (driver included)
	L (mm)	W (mm)	H (mm)
New HiaceD (RHD,AT)	5915	1950	2430	1GD-FTV (2.8L)	EURO V	235/65 R16C	7
